Spot welders – Item 4665N – 35 kVA

Spot welders – Item 4665N – 35 kVA

Divisions: Industrial resistance welding systems,Single phase linear action welders

Power (kVA)

35 kVA
Welding Type

Spot Welding
Secondary Voltage (V)

4 V, 5,4 V
Short Circuit Current (kA)

15,5 kA
Thermal Current (kA)

4,5 kA
Electrode Force

470 daN

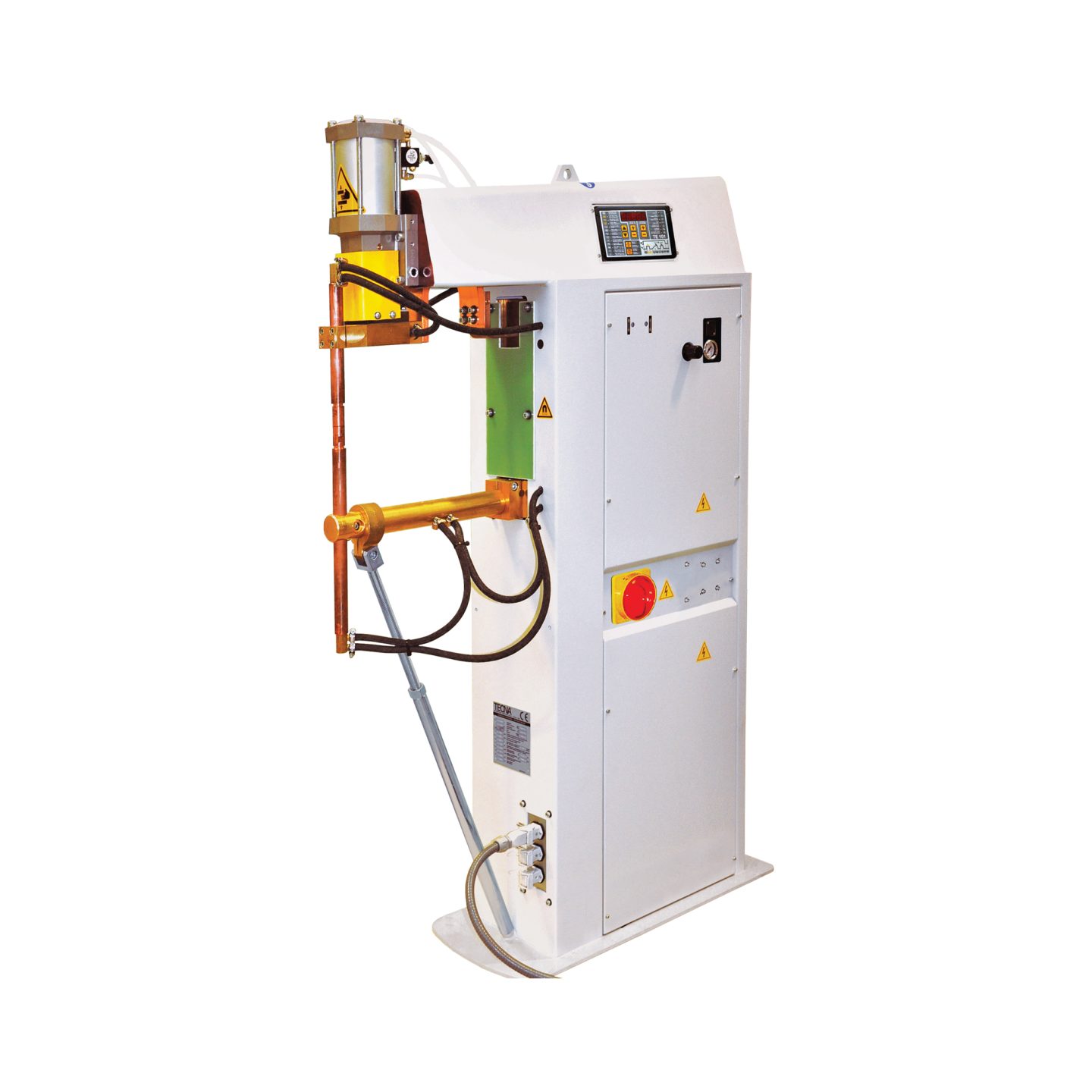

Spot welders with water-cooled epoxy resin coated transformer, water-cooled arms, electrodes and electrode-holders.

  • Chrome-copper electrode-holders for heavy duty and long life, designed for both straight and angled fitting.
  • Microprocessor control unit TECNA TE101.
  • USB Port for data storage (only with TE550).
  • The air operated lubrication free cylinder eliminates oil mist.
  • Protected filter assembly with gauge.
  • Two-stage electric foot-pedal for clamping and welding pieces only if correctly positioned.
  • Pre-connected for additional electric foot-pedal for the direct recalling of welding program No.2. This function is helpful when different kinds of welding are to be performed on the same piece.
  • Adjustable electrodes stroke for max. working rate.
Power (kVA)

35 kVA
Welding Type

Spot Welding
Secondary Voltage (V)

4 V, 5,4 V
Short Circuit Current (kA)

15,5 kA
Thermal Current (kA)

4,5 kA
Electrode Force

470 daN

PDF 466x welder series
