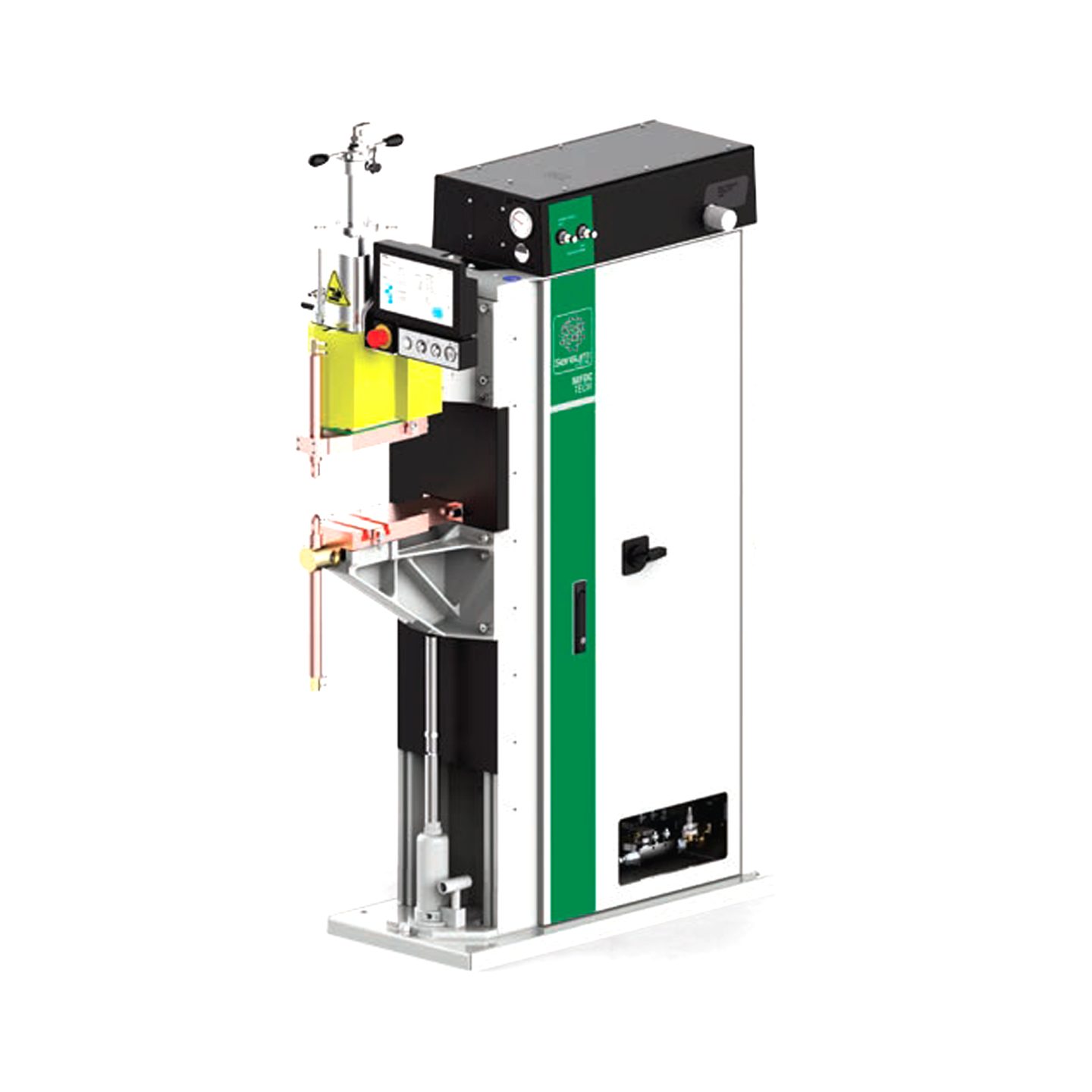

Medium Frequency, Spot and Projection, linear action welding machines – 6154
| Sensum Control System | Sensum |
|---|---|
| Power (kVA) | 160 kVA |
| Short Circuit Current (kA) | 42 kA |
| Thermal Current (kA) | 8,8 kA |
| Secondary Voltage (V) | 12,3 V |
| Electrode Force | 1242 daN, 736 daN |
- Medium frequency welders, designed to obtain high quality welding.
- Modular design of mechanical structure, arms, brackets, cylinders.
- Cylinder with chrome plated stem for heavy duty works and long life; adjustable anti-rotation device.
- Lubrication free pneumatic components to eliminate oil mist and to protect the environment.
- Adjustable double-stroke cylinder with key control.
- Electrodes descent without pressure for both maintenance and set-up.
- Built-in compressed air filter unit and tank. Compressed air disconnection device.
- Water-cooled transformer, plates, electrode-holders and electrodes; transformer with epoxy resin coated windings.
- Two stage electric foot control for clamping and welding pieces only if correctly positioned.
- Pre-setting for additional double stage electric foot switch connection for the direct recalling of a different welding program.
- Arranged for all models: two-hand safety control with timer and removable key selector, assuring the best safety. The two-hand control device is standard on projection models only (it is available upon request on spot welder models).
- Emergency push-button to stop the machine immediately.
- Protection with safety module.
- Flow-switch which stops the machine if the cooling water does not flow.
- Clean design.
- Touch screen interface.
| Sensum Control System | Sensum |
|---|---|
| Power (kVA) | 160 kVA |
| Short Circuit Current (kA) | 42 kA |
| Thermal Current (kA) | 8,8 kA |
| Secondary Voltage (V) | 12,3 V |
| Electrode Force | 1242 daN, 736 daN |
