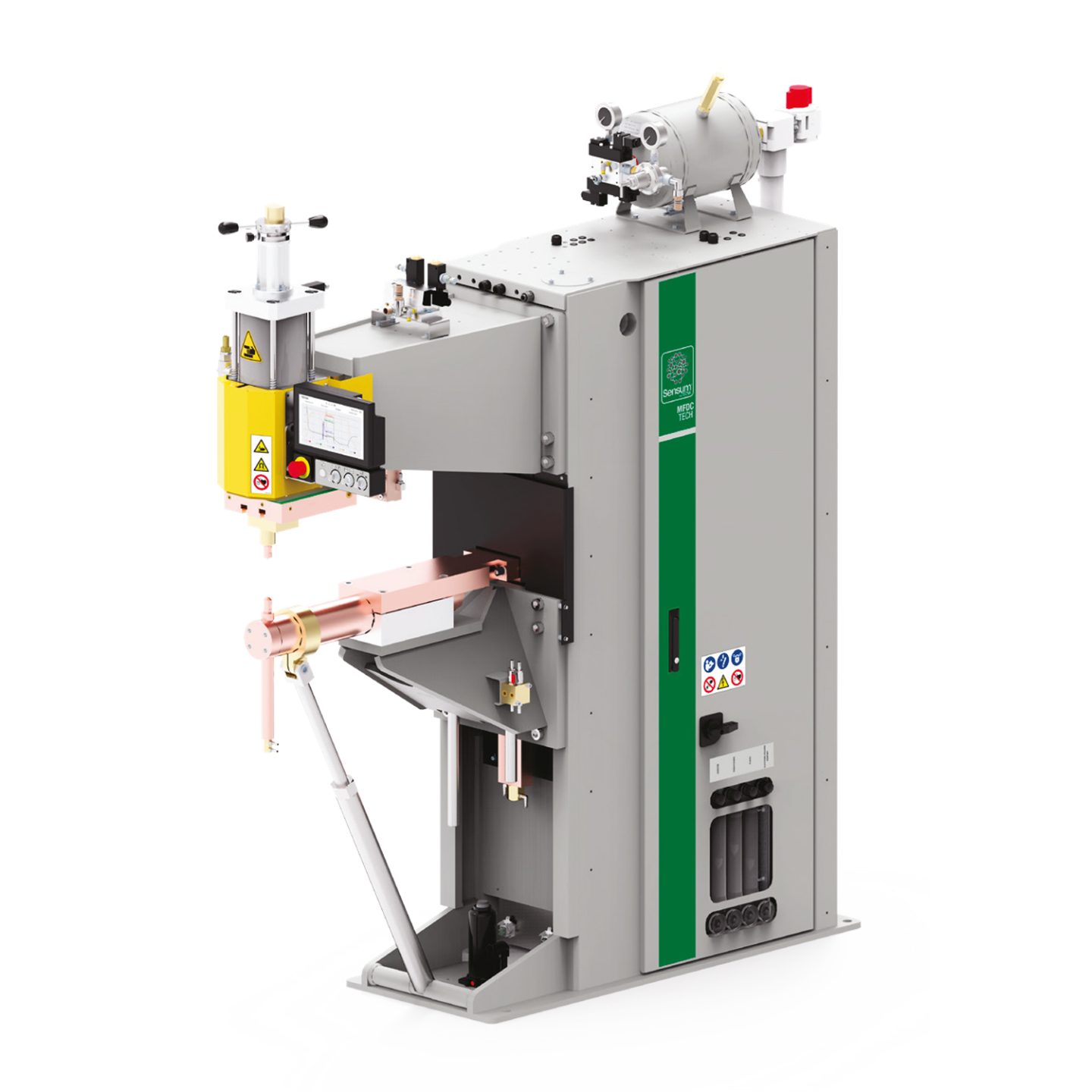

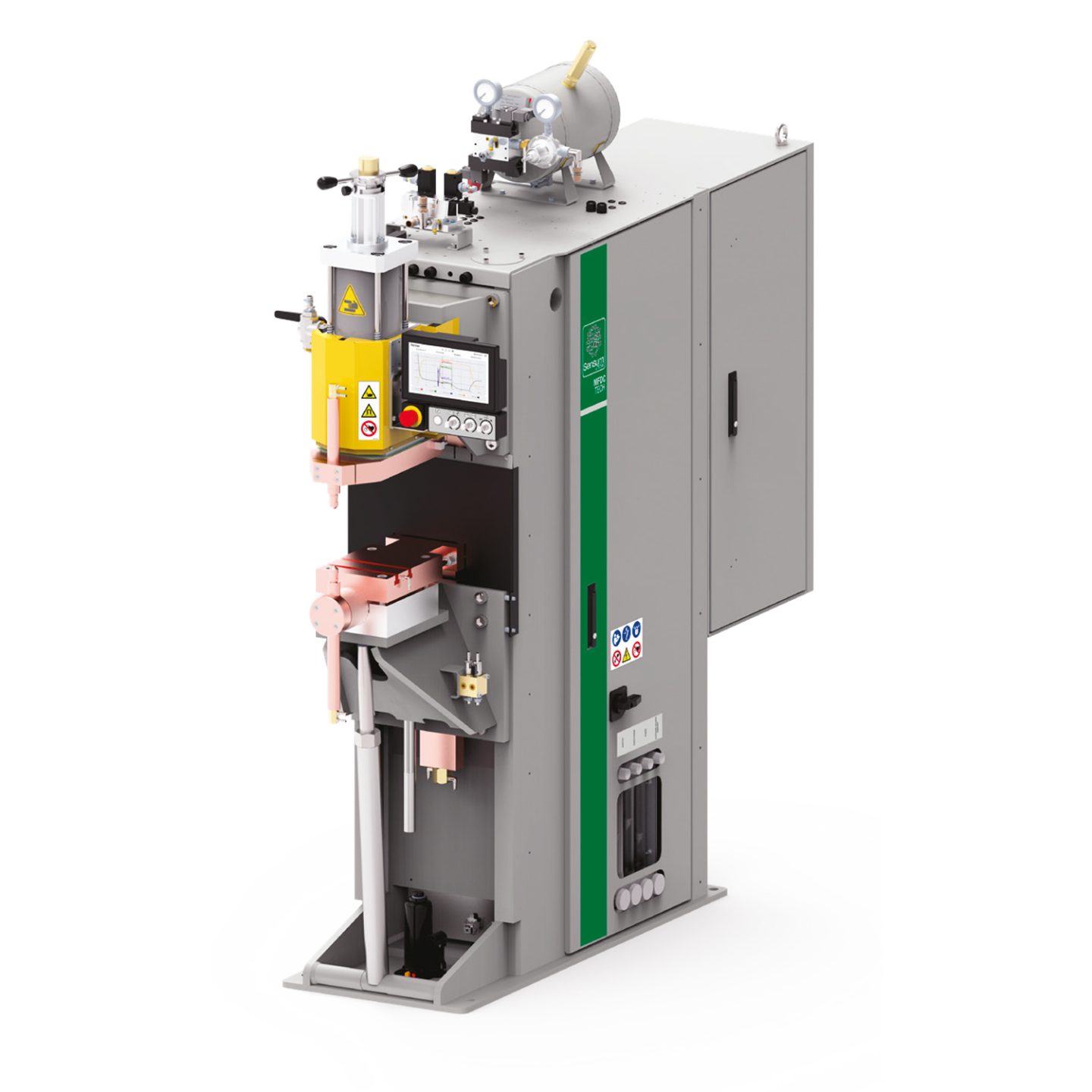

Structure B – MB1P1:MB4Z7
From general industry to automotive manufacturing, aerospace engineering, trains, and heavy machinery production, our welding equipment provides the precision and reliability necessary to complete any task.
This allows operators to work most efficiently and effectively, ensuring complete safety.
Each welder is equipped with state-of-the-art technology, guaranteeing superior performance to meet diverse materials and the most complex welding requirements.
Catalogues
Features
Medium frequency welders, designed to obtain high quality welding.
• Modular design of mechanical structure, arms, brackets, cylinders.
• Presence of a series of holes on the structure that allow the installer to mount guards or other devices.
• Cylinder with chrome plated stem for heavy duty works and long life; adjustable anti-rotation device.
• Lubrication free pneumatic components to eliminate oil mist and to protect the environment.
• Adjustable double-stroke cylinder with key control.
• Electrodes descent without pressure for both maintenance and set-up.
• Built-in compressed air filter unit and tank. Compressed air disconnection device.
• Water-cooled transformer, plates, electrode-holders and electrodes; transformer with epoxy resin coated windings.
• Two stage electric foot control for clamping and welding pieces only if correctly positioned.
• Pre-setting for additional double stage electric foot switch connection for the direct recalling of a different welding program.
• Arranged for all models: two-hand safety control with timer and removable key selector, assuring the best safety. The two-hand control device is standard on projection models only (it is available upon request on spot welder models).
• Emergency push-button to stop the machine immediately.
• Protection with safety module.
• Flow-switch which stops the machine if the cooling water does not flow.
• Clean design.

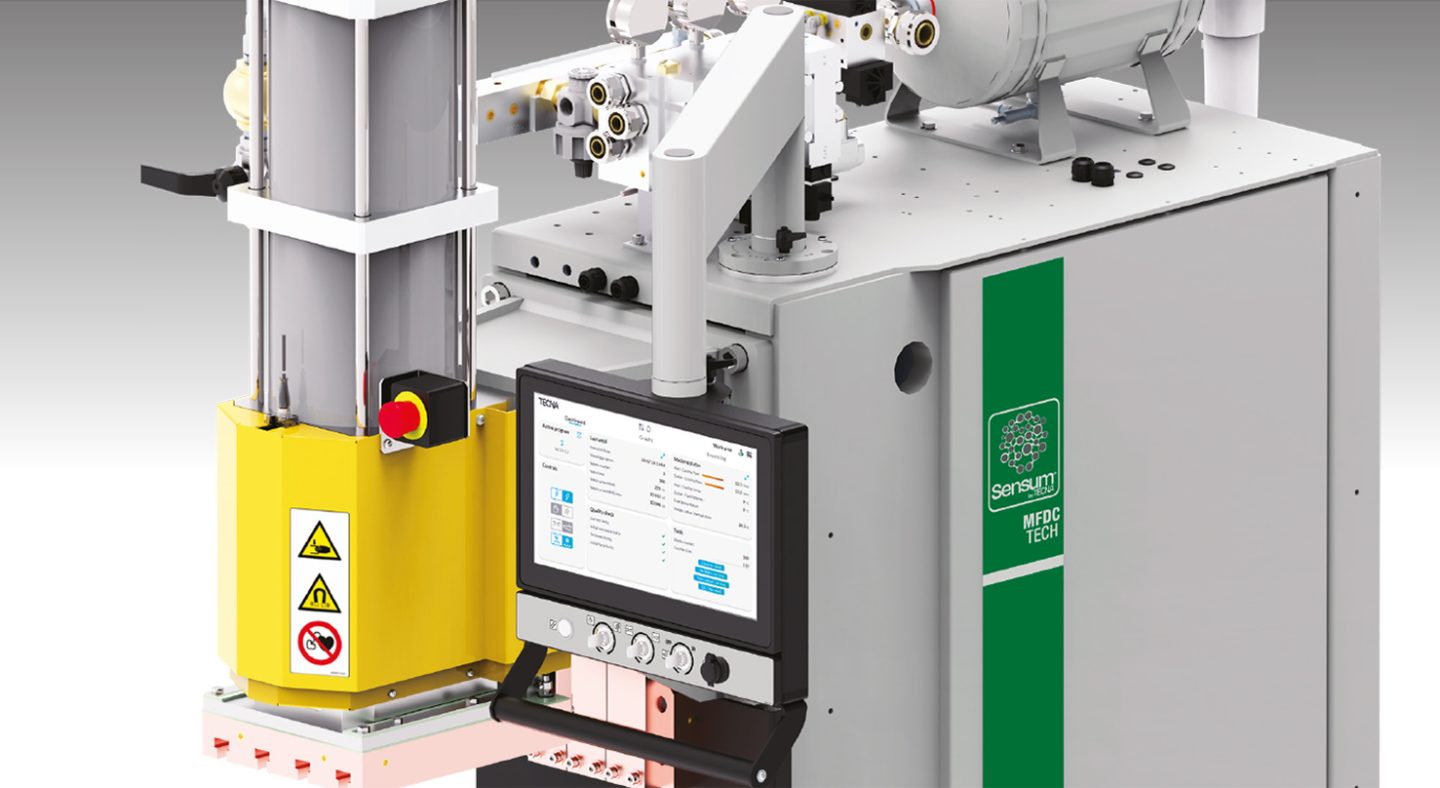

• SENSUM Touch screen interface.
Dashboard
Graphs
Programmazione

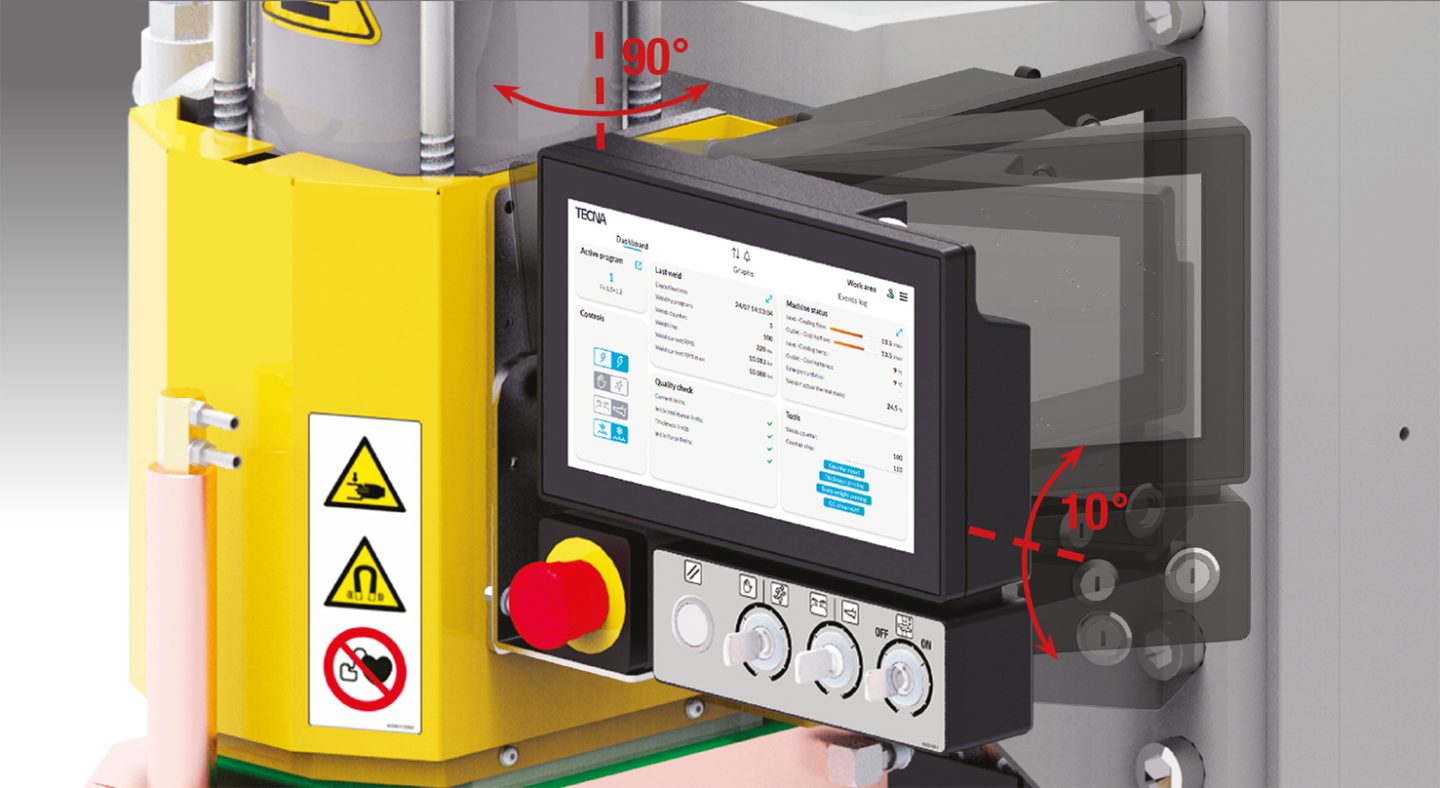

10°
15°

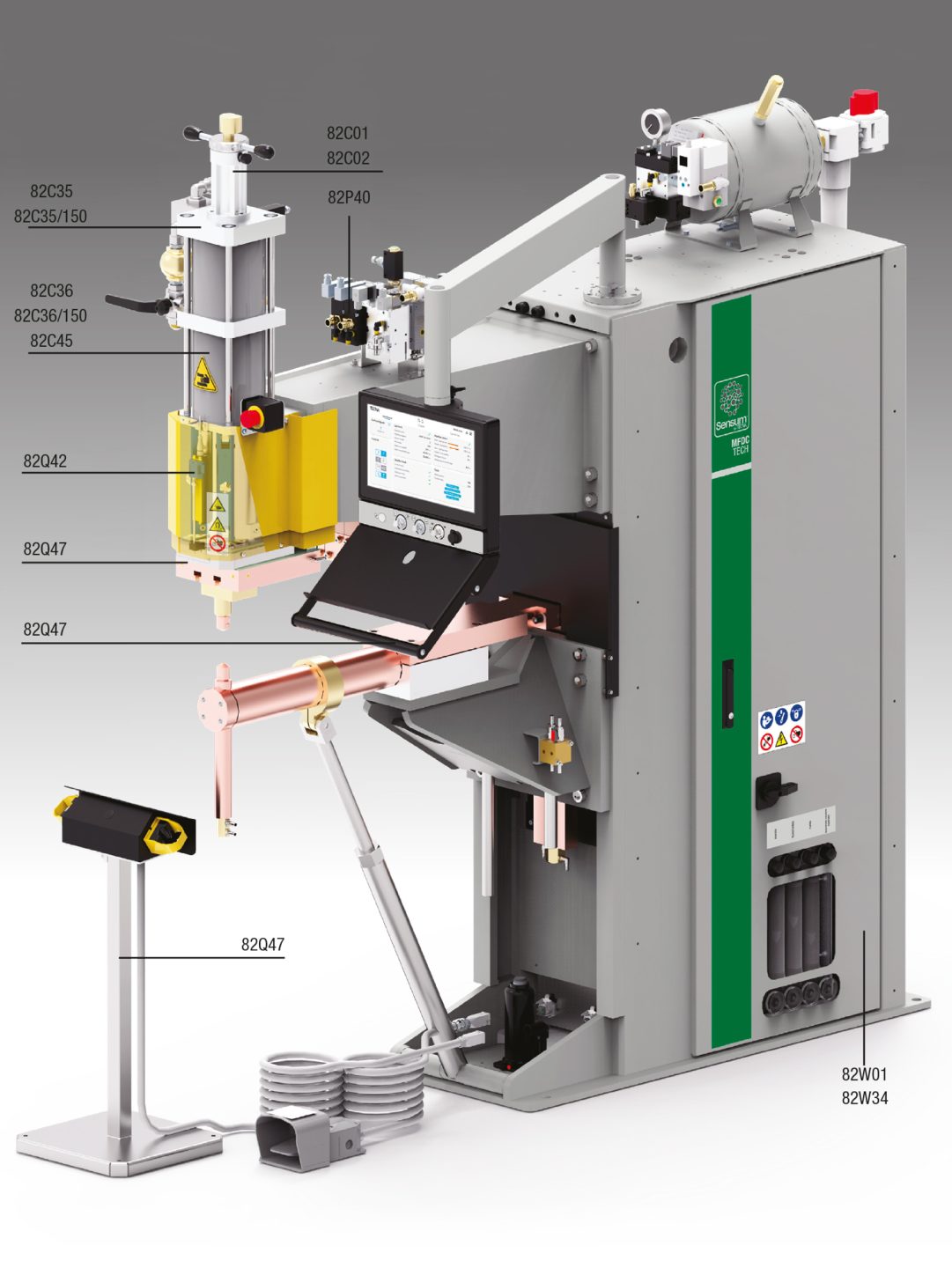

Options
