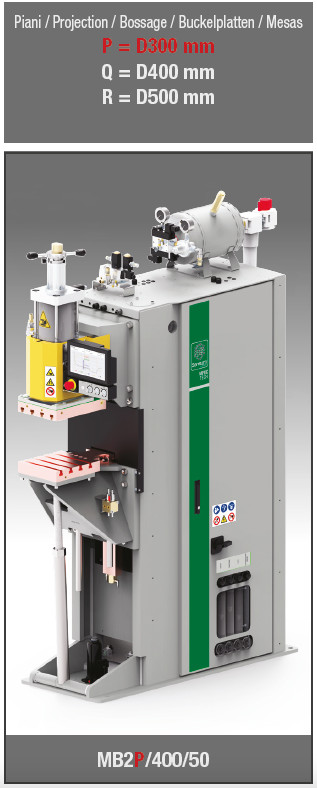

Medium Frequency Projection Linear Action Welding Machine

Divisions: Industrial resistance welding systems,MF inverter, linear action welders

Sensum Control System	Sensum
Power (kVA)	160 kVA, 200 kVA, 240 kVA, 90 kVA
Welding Type	Projection Welding
Short Circuit Current (kA)	32 kA, 42 kA, 64 kA, 80 kA
Thermal Current (kA)	13 kA, 15 kA, 6,1 kA, 8,8 kA
Secondary Voltage (V)	10,4 V, 10,9 V, 12,3 V, 9,9 V
Power Supply	MFDC (Medium Frequency DC)
Transformer Type	MFDC Inverter
Max. Electrode Throat Depth	500 mm
Electrode Force	1206 daN, 1242 daN, 1885 daN, 2030 daN, 2945 daN, 3388 daN, 736 daN
Max. Weld Force	3388 daN
Stroke Length	100 mm, 150 mm

Ask for a quote

Range: MB1P1:MB4R7
• Medium frequency welders, designed to obtain high quality welding.

• Modular design of mechanical structure, arms, brackets, cylinders.

• Presence of a series of holes on the structure that allow the installer to mount guards or other devices.

• Cylinder with chrome plated stem for heavy duty works and long life; adjustable anti-rotation device.

• Lubrication free pneumatic components to eliminate oil mist and to protect the environment.

• Adjustable double-stroke cylinder with key control.

• Electrodes descent without pressure for both maintenance and set-up.

• Built-in compressed air filter unit and tank. Compressed air disconnection device.

• Water-cooled transformer, plates, electrode-holders and electrodes; transformer with epoxy resin coated windings.

• Two stage electric foot control for clamping and welding pieces only if correctly positioned.

• Pre-setting for additional double stage electric foot switch connection for the direct recalling of a different welding program.

• Arranged for all models: two-hand safety control with timer and removable key selector, assuring the best safety. The two-hand control device is standard on projection models only (it is available upon request on spot welder models).

• Emergency push-button to stop the machine immediately.

• Protection with safety module.

• Flow-switch which stops the machine if the cooling water does not flow.

• Clean design.

• SENSUM Touch screen interface.

Sensum Control System	Sensum
Power (kVA)	160 kVA, 200 kVA, 240 kVA, 90 kVA
Welding Type	Projection Welding
Short Circuit Current (kA)	32 kA, 42 kA, 64 kA, 80 kA
Thermal Current (kA)	13 kA, 15 kA, 6,1 kA, 8,8 kA
Secondary Voltage (V)	10,4 V, 10,9 V, 12,3 V, 9,9 V
Power Supply	MFDC (Medium Frequency DC)
Transformer Type	MFDC Inverter
Max. Electrode Throat Depth	500 mm
Electrode Force	1206 daN, 1242 daN, 1885 daN, 2030 daN, 2945 daN, 3388 daN, 736 daN
Max. Weld Force	3388 daN
Stroke Length	100 mm, 150 mm

PDF – Downloads

DCI1700004 – Medium Frequency, Spot, Projection and Spot and Projection, Linear Action Welding Machines 90 : 240 kVA
