| Capacity Range | 20—30 Kg |
|---|---|
| Stroke Length | 2100 mm |
| Cable Type | Stainless Steel |
| Application Environment | Food Grade |

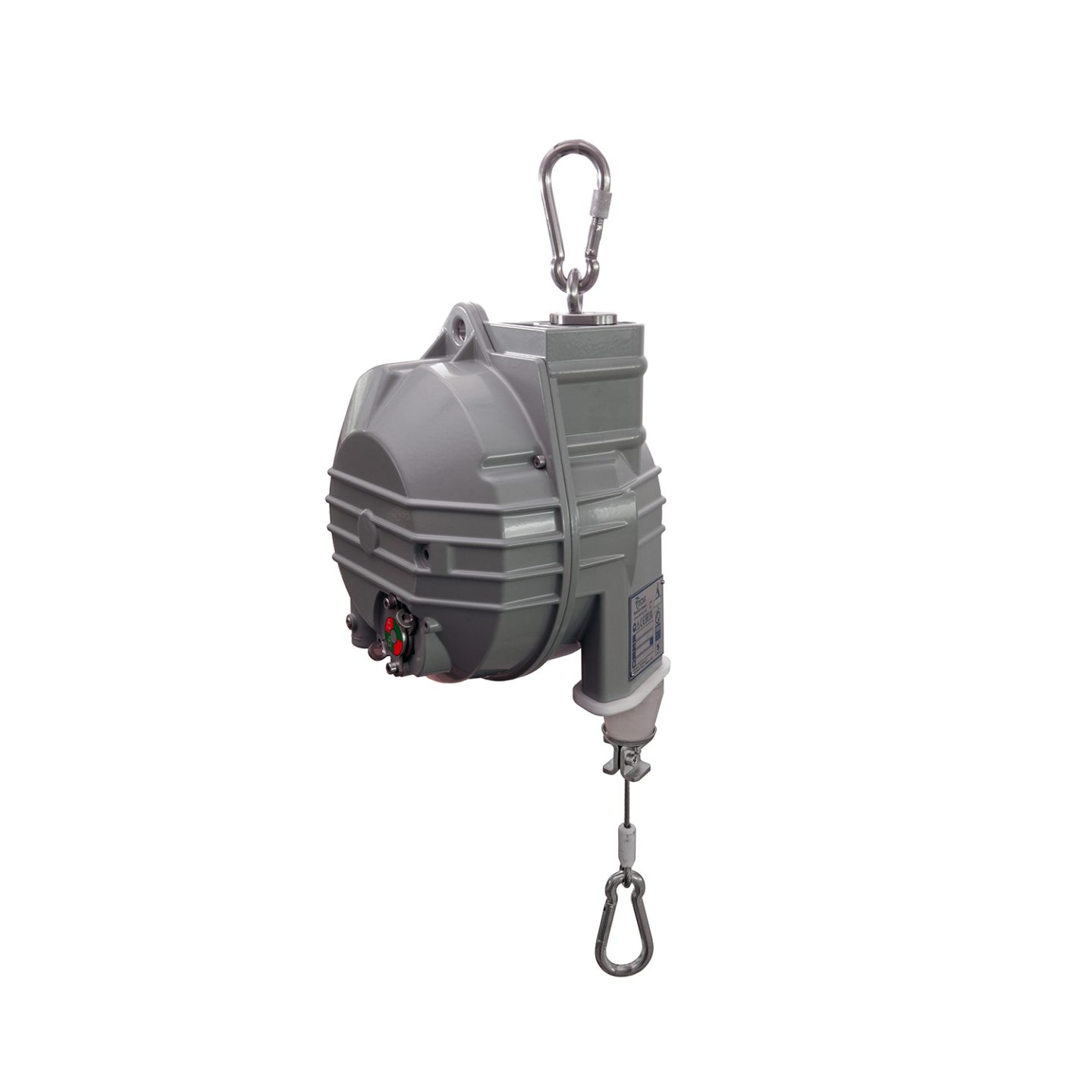

9502RL
- Cast aluminium housing with special high-strength Rilsan ® treatment against oxidation and chemical aggression from soaps and detergents
- Smoother surface facilitates cleaning and sanitization
- Food grade rope guide, shock absorber and wire cap
- Rustproof and Stainless Steel exterior materials
- Rustproof and Stainless Steel interior materials
- NSF-H1 certified food grade grease
- Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel rope.
- Adjustable capacity by means of a worm screw.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Centrifugal safety device
- Upper rotary suspension with safety hook.
- Locking device to block the load at any height.
- Adjustable stroke limiting device.
- Taper drum rotating on ball bearings.
- Cable guide in antifriction material.
- Lining up upper hook.
- Inert spring drum assembly.
