| Sensum Control System | Sensum |
|---|---|
| Power (kVA) | 240 kVA, 315 kVA |
| Transformer Type | MFDC Inverter |
| Max. Weld Current | 180 kA |
| Power Supply | MFDC (Medium Frequency DC) |
- Nominal output current 5000 A, output voltage 500 V
- Master-slave architecture: two inverters driven as one to scale power with the process
- Mains supply 380–415 V three phase, 50/60 Hz, working frequency 1 kHz

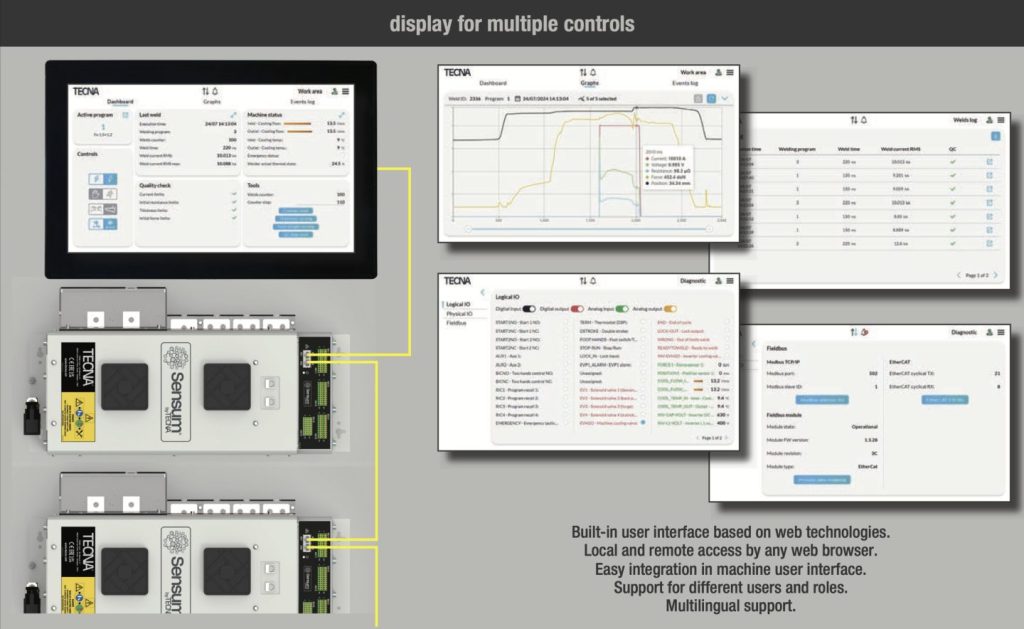

- Built-in web user interface: local or remote access from any browser, multilingual, with user roles
- Dual Ethernet port with integrated switch; EtherCAT, PROFINET or EtherNet/IP fieldbus optional
- Optional I/O expansion board: 7 analog in, 21 digital in, 5 solenoid valve out, 8 digital out, 3 analog out
- Heavy duty water cooling, 12 l/min at 4 bar max, water valve kit included
- 800 × 1100 × 410 mm, 160 kg; operating range 5–40 °C, up to 90% relative humidity
- CE marked
