MF inverter suspended guns – Items 3230 – 50 kVA

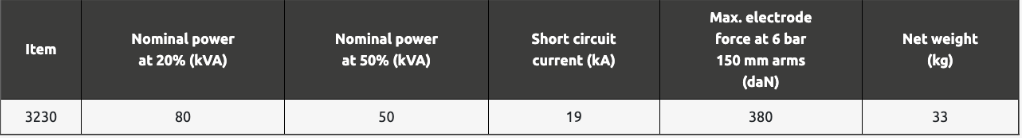

| Power (kVA) | 50 kVA |
|---|---|
| Gun Type | Air Operated Welding Guns |
| Electrode Force | 380 daN |
| Short Circuit Current (kA) | 19 kA |
3230
Medium frequency, air operated spot welding guns
CONTROL CABINET FOR MEDIUM FREQUENCY WELDERS
The control cabinet, which controls the medium frequency welder, integrates the inverter, the welding control unit TE770, the protection and safety devices. There are different sizes available, depending on the power of the welder.
WELDING CONTROL UNIT TE770
- Simplified programming by means of 9 keys and backlit graphic display.
- Medium frequency inverter control.
- Slope up, slope down, pulses, pre-weld, post-weld functions and adjustment of the welding times with 1 ms resolution.
- Display of the welding current RMS and of the use percentage of the welding machine.
- 2 operating modes: constant current and FIX.
- Welding current limits and inverter use percentage.
- Stepper function to compensate the electrodes wear with programmable curves.
- Communication via USB port.(Optional)
- Possibility of displaying the welding time and the welding current graphically.
- Possibility of consulting welding tables.
| Power (kVA) | 50 kVA |
|---|---|
| Gun Type | Air Operated Welding Guns |
| Electrode Force | 380 daN |
| Short Circuit Current (kA) | 19 kA |
