| Power (kVA) | 6 kVA |
|---|---|
| Gun Type | Portable Spot Welding |
| Secondary Voltage (V) | 2,5 V |
| Electrode Force | 125 daN, 40 daN, 52 daN, 70 daN |
- Water cooled. Same features as in item 7913.

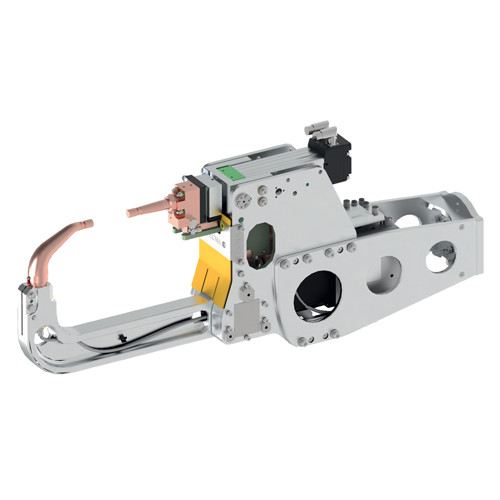

- Fully water-cooled portable spot gun
- For high operating rate works in car body repair and light production works in Industry.
- Synchronous built-in electronic timer with SCR from 2 to 65 cycles.
- Compensation circuit starts the timer only when there is a proper passage of current, which enables to perform on oxidised sheets, on surfaces with paint residues or on black sheets.
- Current control with phase shift adjustment to carry out difficult welds, on very thin thickness, on rods with reduced diameter, on stainless steel sheet and similar.
- Balanced construction for easy operation.
- Thread base for fixing on a bench.
- A built-in differential pressure switch operates the timer when the electrode force is correct.
- Additional arm couplings to provide larger opening between arms.
- All transformer are coated with F class insulation material. Insulation test performed at 4000 V.
- To be used with arms item 7512 – 7513 – 7514 – 7515 (on request).
Pulsation weld time control available (P version).
