| Power (kVA) | 32 kVA, 36 kVA, 54 kVA, 56 kVA, 60 kVA, 75 kVA, 90 kVA |
|---|---|
| Gun Type | Robot Welding Gun |
| Welding Type | Spot Welding |
| Secondary Voltage (V) | 9,9 V |
| Thermal Current (kA) | 6,1 kA |
| Short Circuit Current (kA) | 32 kA |
| Max. Weld Force | 468 daN, 535 daN, 625 daN, 682 daN, 750 daN, 834 daN, 939 daN |

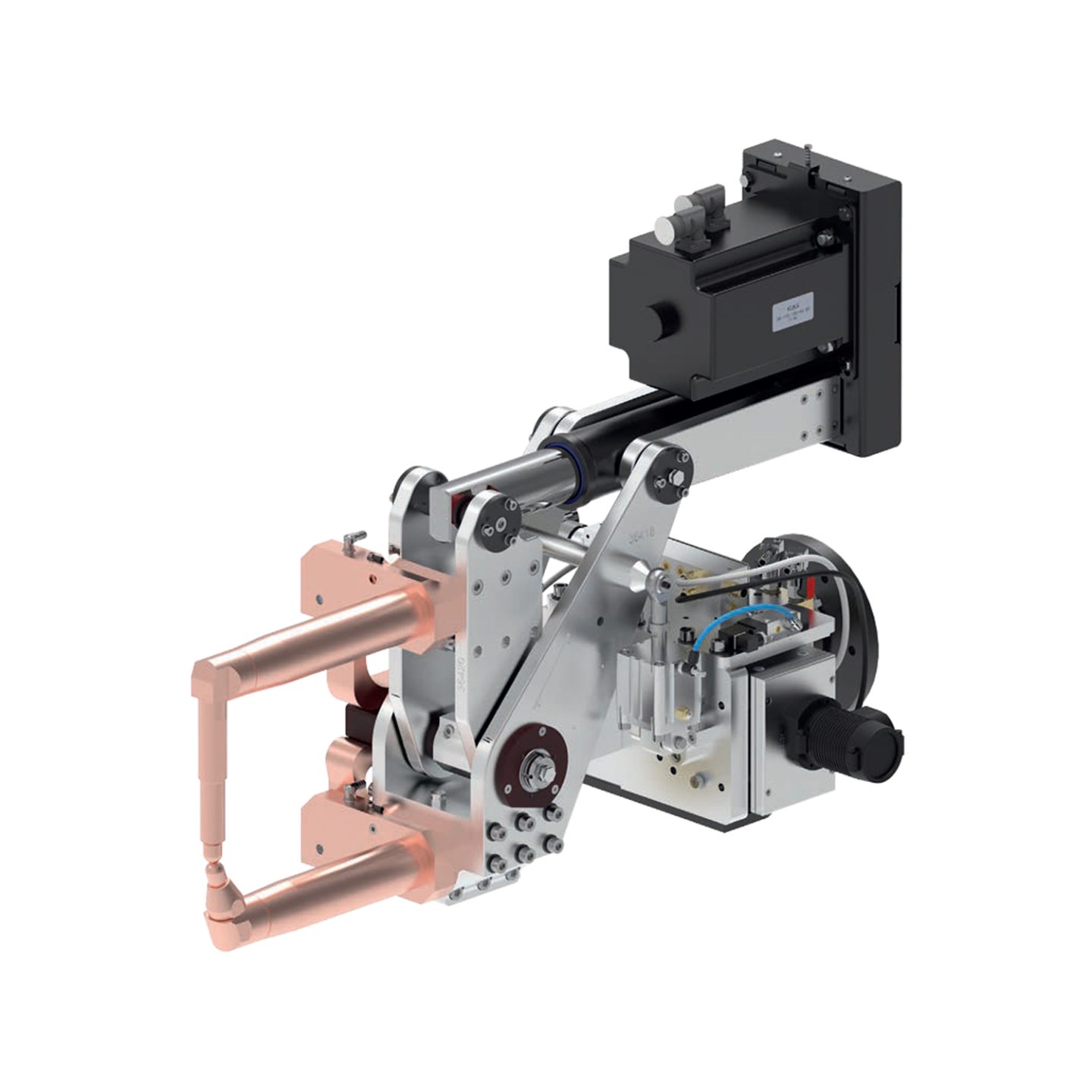

Tecna’s SERVO ROBOT SPOT WELDING GUNS with BELT TRANSMISSION are a classic in robot spot welding. Models 2903 and 2913 with the 11Nm motor are excellent heavy duty, capable of massive force. The range of models and configurations, transformers and arms offers a complete cover for any project. Flexibility and adaptation blend with force and reliability on TECNA’s robot guns.
A great tool for robot welding.
