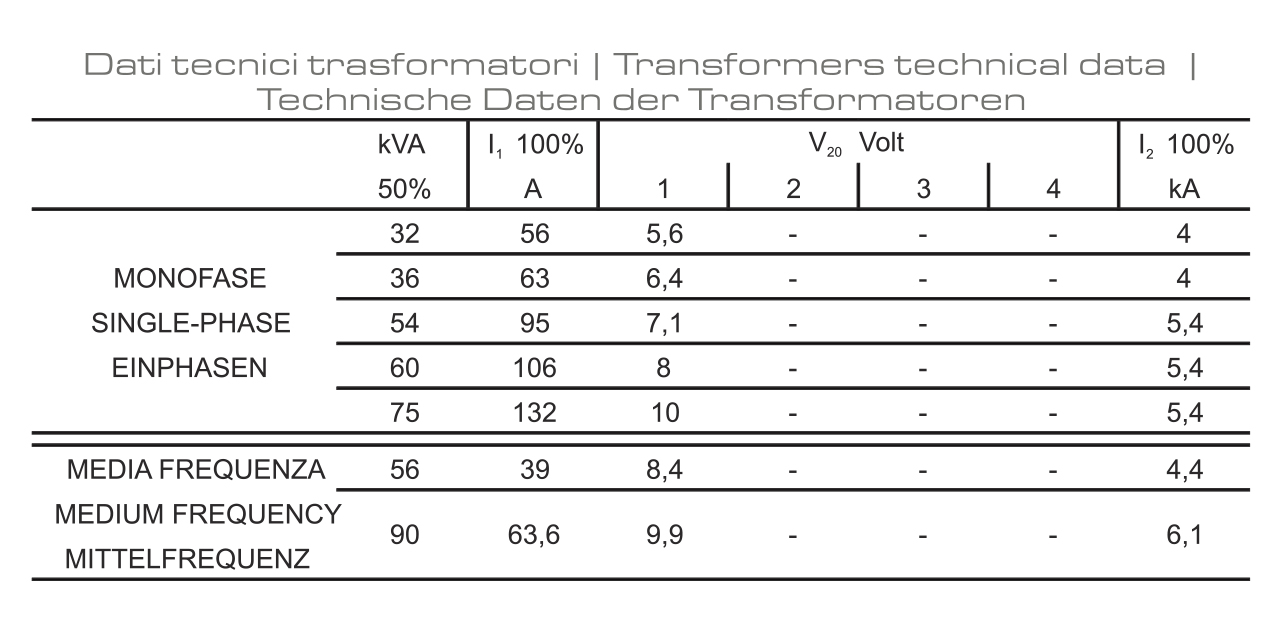

| Power (kVA) | 90 kVA |
|---|---|
| Gun Type | Robot Welding Gun |
| Welding Type | Spot Welding |
| Secondary Voltage (V) | 9,9 V |
| Thermal Current (kA) | 6,1 kA |
| Short Circuit Current (kA) | 32 kA |
| Max. Weld Force | 254 daN, 290 daN, 339 daN, 371 daN, 407 daN, 453 daN, 509 daN |

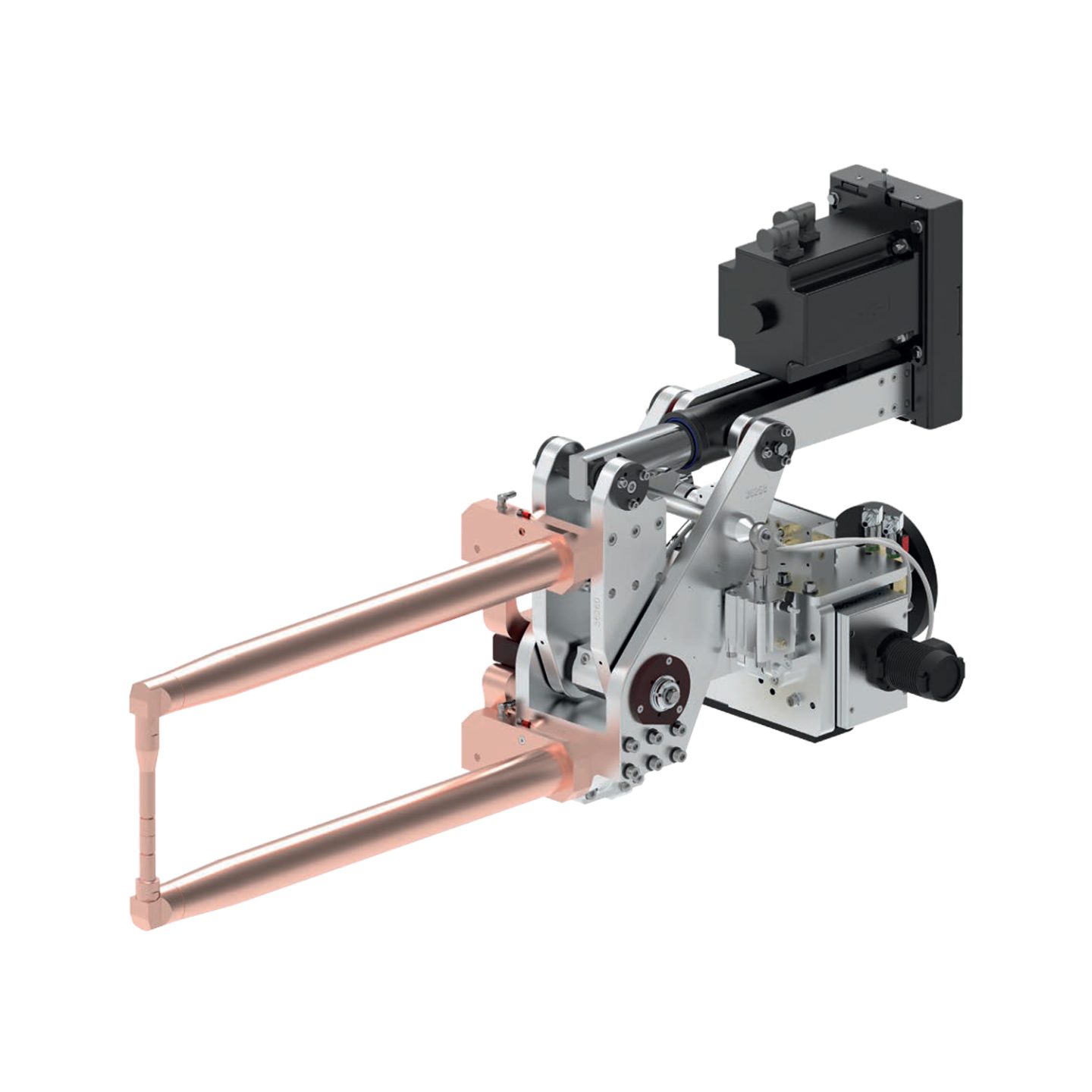

Tecna’s SERVO ROBOT SPOT WELDING GUNS with BELT TRANSMISSION are a classic in robot spot welding. Models 2903 and 2913 with the 11Nm motor are excellent heavy duty, capable of massive force. The range of models and configurations, transformers and arms offers a complete cover for any project. Flexibility and adaptation blend with force and reliability on TECNA’s robot guns.
A great tool for robot welding.
