| Power (kVA) | 56 kVA |
|---|---|
| Gun Type | Robot Welding Gun |
| Welding Type | Spot Welding |
| Secondary Voltage (V) | 8,4 V |
| Thermal Current (kA) | 4,4 kA |
| Short Circuit Current (kA) | 25 kA |

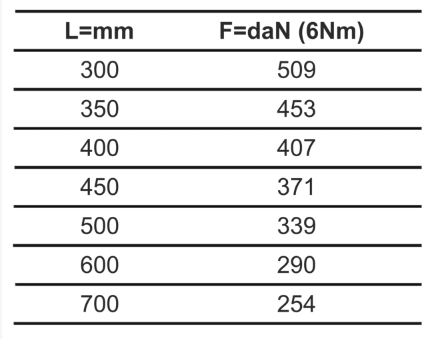

| Max. Weld Force | 254 daN, 290 daN, 339 daN, 371 daN, 407 daN, 453 daN, 509 daN |

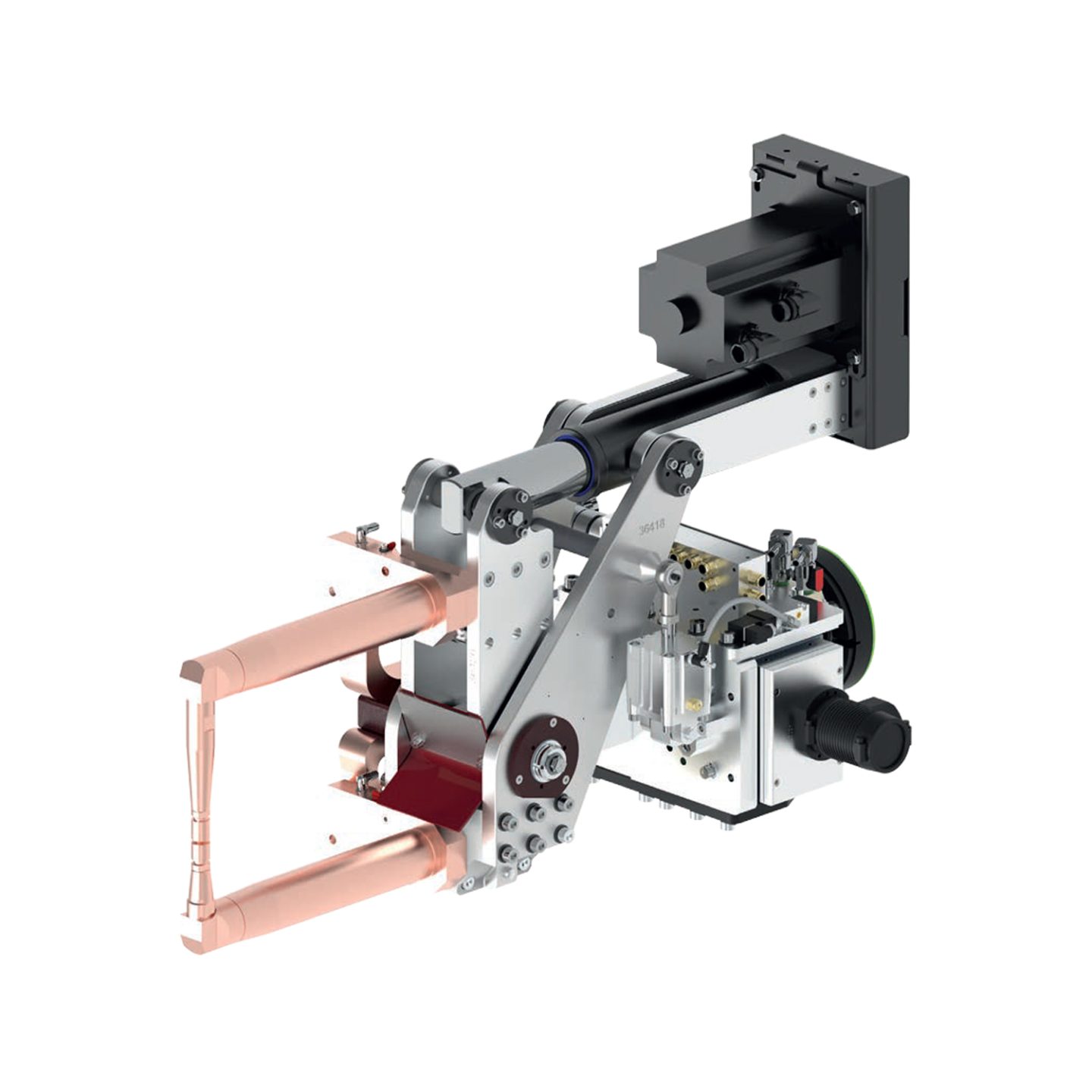

Tecna’s SERVO ROBOT SPOT WELDING GUNS with BELT TRANSMISSION are a classic in robot spot welding. Capable of great force, the range of models and configurations, transformers and arms offers a complete cover for any project. Flexibility and adaptation blend with force and reliability on TECNA’s robot guns.
A great tool for robot welding.
