| Power (kVA) | 47 kVA, 90 kVA |
|---|---|
| Gun Type | Robot Welding Gun |
| Welding Type | Spot Welding |
| Secondary Voltage (V) | 6,1 V, 9,1 V |
| Thermal Current (kA) | 5 kA, 6 kA |
| Short Circuit Current (kA) | 20 kA, 25 kA |
| Max. Weld Force | 350 daN, 460 daN, 470 daN, 580 daN, 600 daN |
Tecna’s new generation ROBOT SPOT WELDING GUNS bring a strong wind of change in the world of robot spot welding. Flexibility and adaptation blend with force, strong build and light weight to create a tool with virtual unlimited configurations and applications.
A true total tool for robot welding.

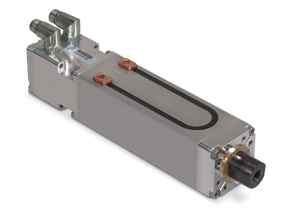

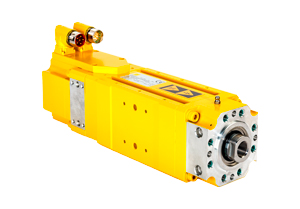

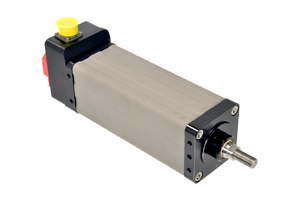

Light-type gun with third party motorized actuator drive, with inverted roller screw actuators.
