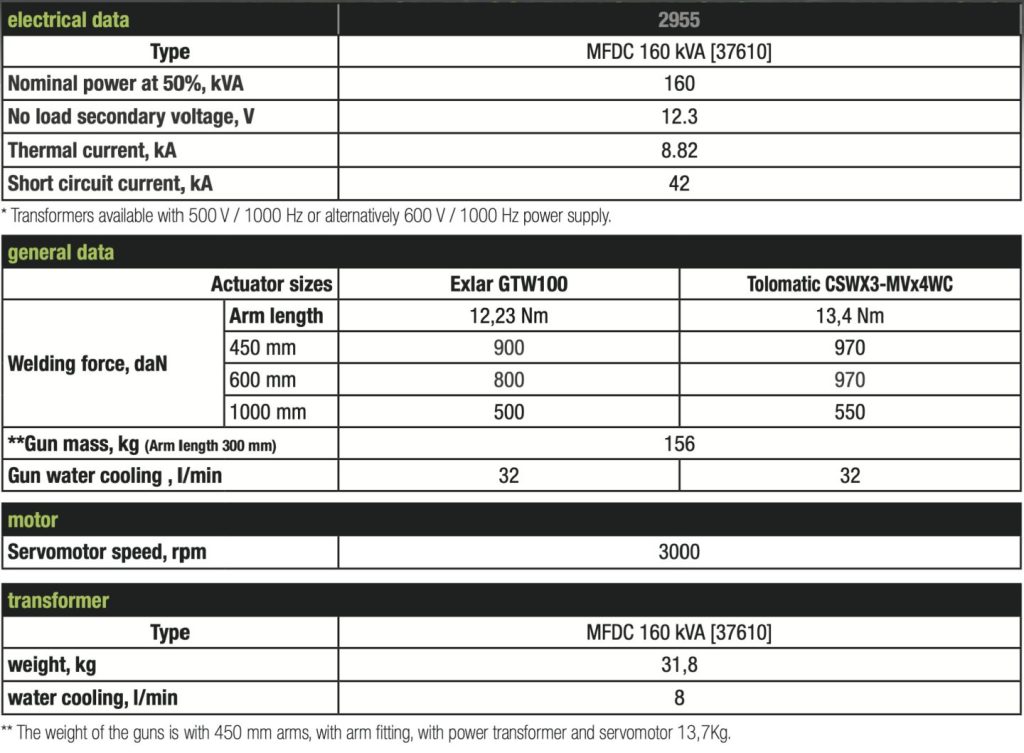

| Power (kVA) | 160 kVA |
|---|---|
| Gun Type | Robot Welding Gun |
| Welding Type | Spot Welding |
| Secondary Voltage (V) | 12,3 V |
| Thermal Current (kA) | 8,8 kA |
| Short Circuit Current (kA) | 42 kA |
| Max. Weld Force | 500 daN, 550 daN, 800 daN, 900 daN, 970 daN |
Tecna’s new generation ROBOT SPOT WELDING GUNS bring a strong wind of change in the world of robot spot welding. Flexibility and adaptation blend with force, strong build and light weight to create a tool with virtual unlimited configurations and applications.

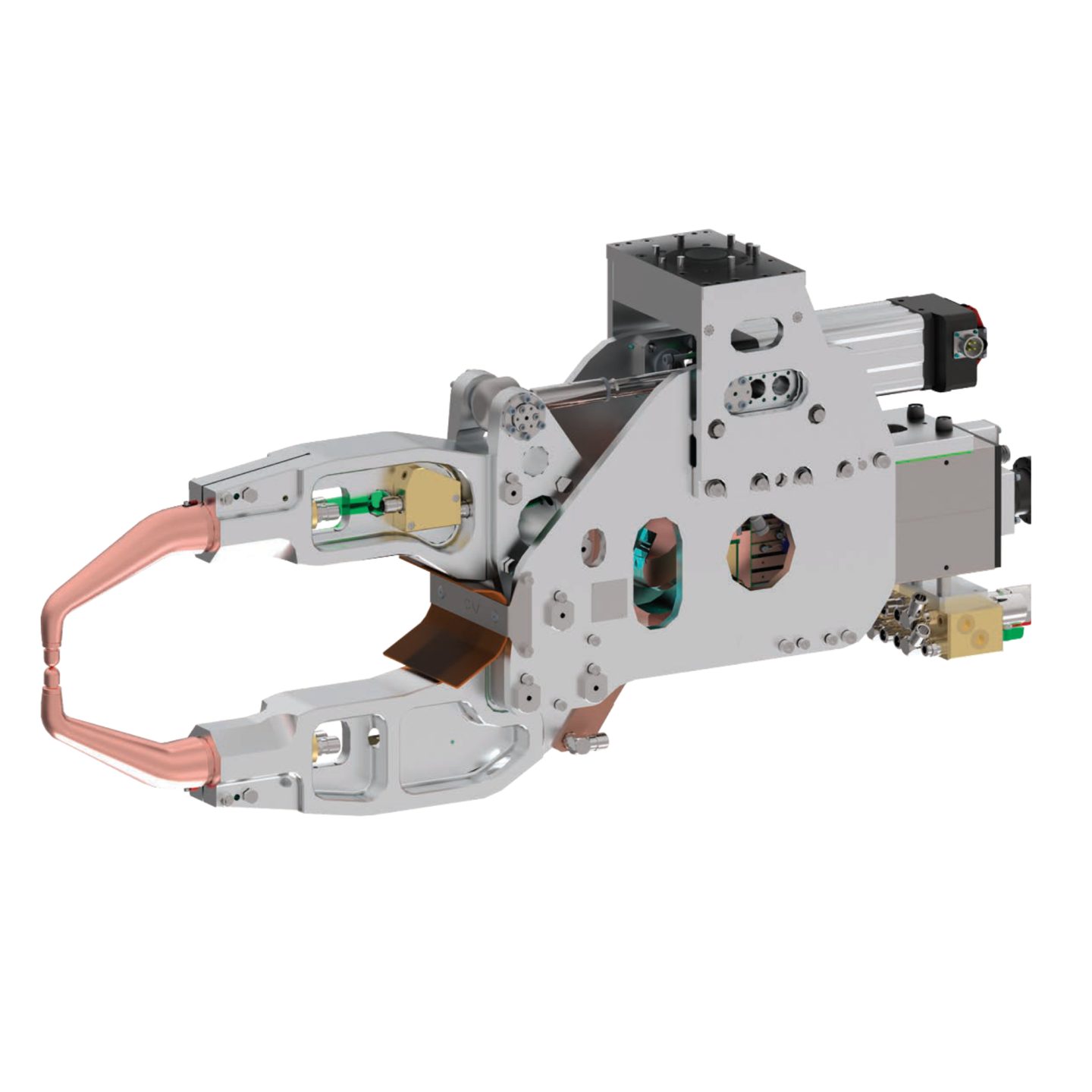

The 2954 is the most powerful servo gun produced by Tecna, designed for heavy welding applications and specifically for welding Aluminium parts in automotive industry.

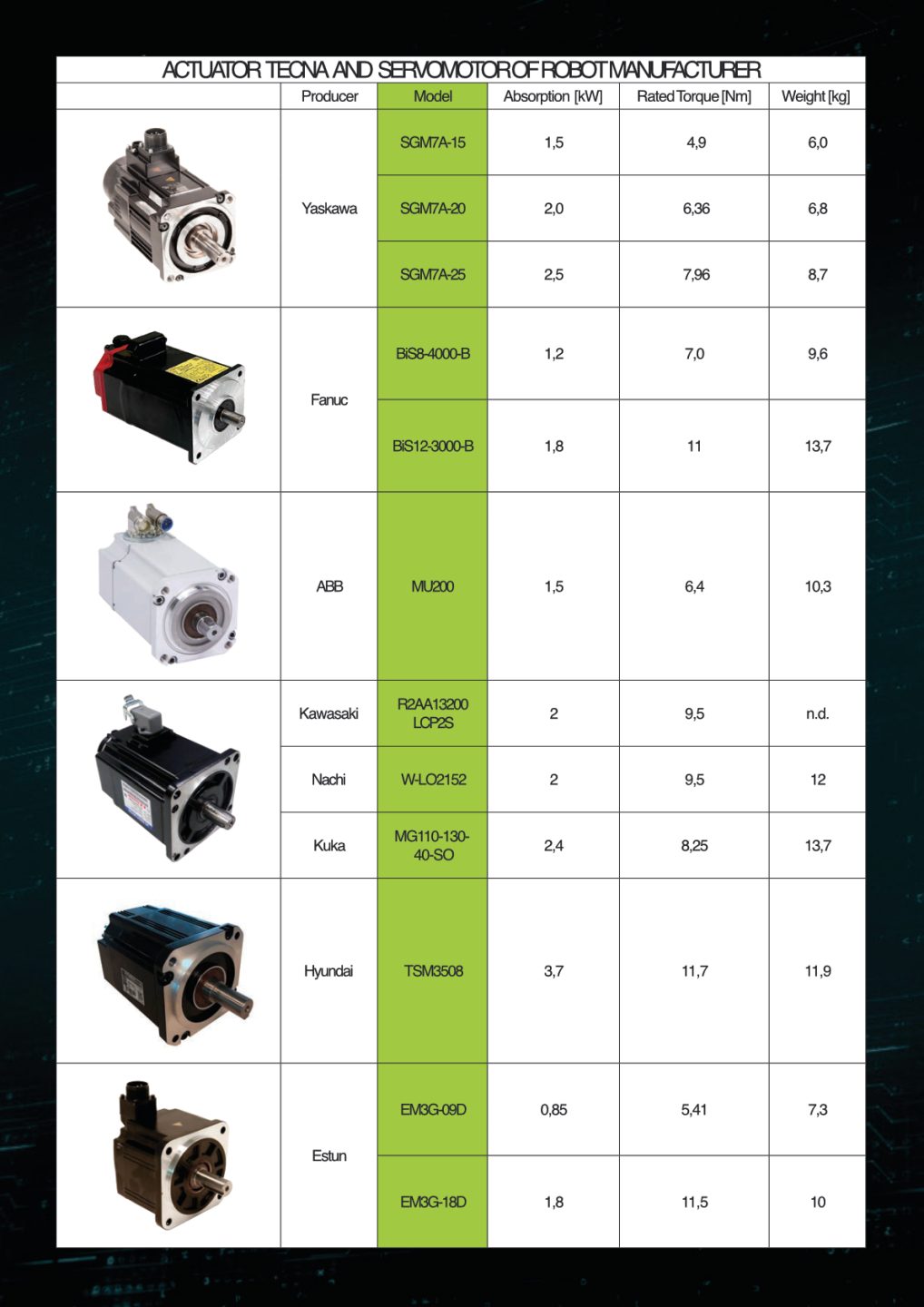

X-type gun with third party motorized actuator drive, with inverted roller screw actuators.
