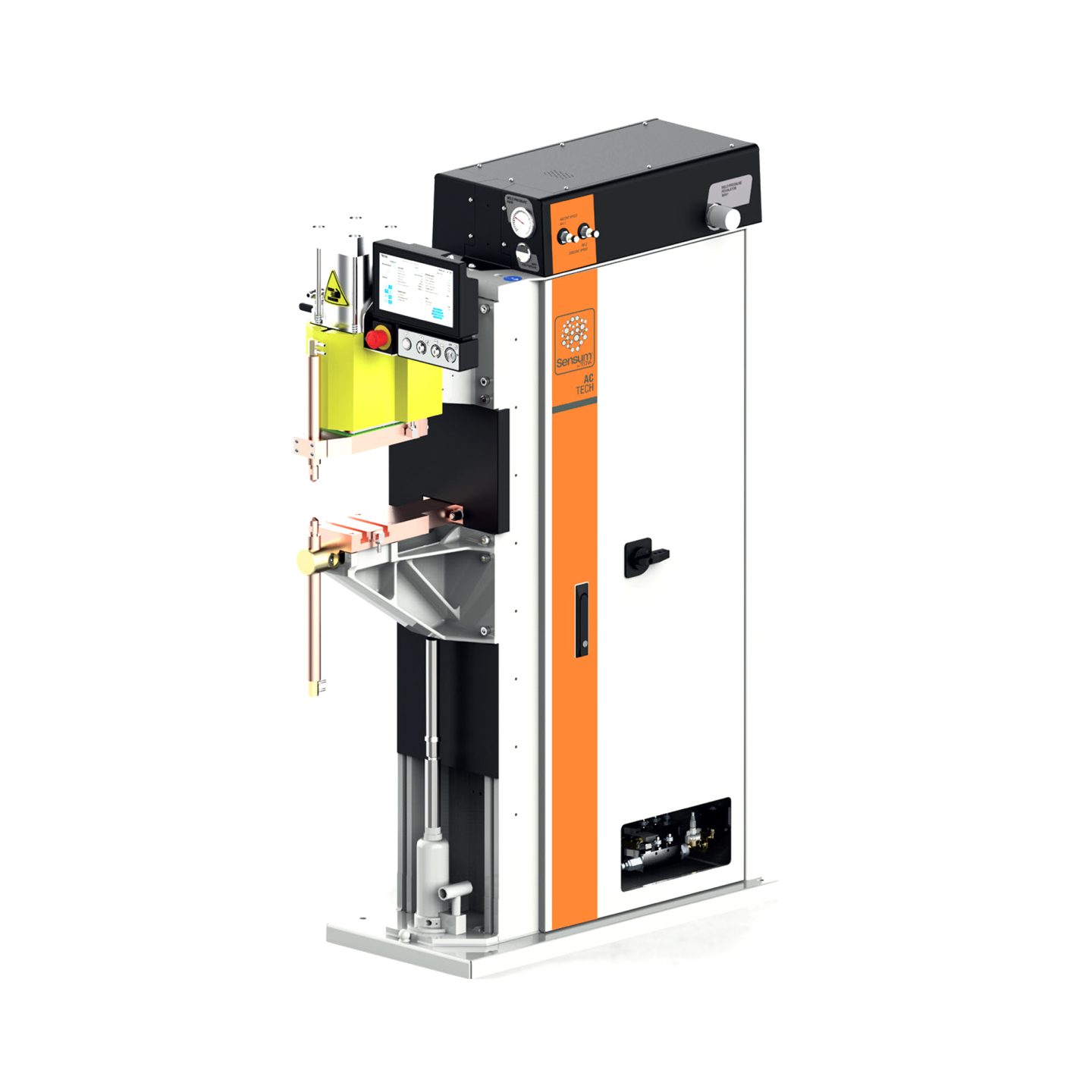

Single-phase spot and projection linear action welding machines – 8251
| Sensum Control System | Sensum |
|---|---|
| Power (kVA) | 63 kVA |
| Welding Type | Spot and Projection |
| Short Circuit Current (kA) | 40 kA |
| Thermal Current (kA) | 6,2 kA |
| Secondary Voltage (V) | 5 V, 5,6 V, 6,3 V, 7,1 V |
| Max. Electrode Throat Depth | 390 mm |
| Electrode Force | 1242 daN, 736 daN |
- Modular design of mechanical structure, arms, brackets, cylinders.
- Presence of a series of holes on the structure that allow the installer to mount guards or other devices.
- Cylinder with chrome plated stem for heavy duty works and long life; adjustable anti-rotation device.
- Lubrication free pneumatic components to eliminate oil mist and to protect the environment.
- Head descent without pressure for set up and service.
- Double-stroke cylinder with key control.
- Built-in compressed air filter unit and tank. Compressed air disconnection device.
- Electrodes speed control valves, shock absorber for end of stroke and air discharge silencers assuring the minimum noise.
- Two stage electric foot control for clamping and welding pieces only if correctly positioned.
- Preconnected for additional double stage electric foot control for the direct recalling of welding program No. 2.
- Water-cooled transformer, plates, electrode-holders and electrodes; transformer with epoxy resin coated windings.
- Synchronous SCR contactor insulated from the cooling water circuit with protection thermostat.
- Standard on all models; two-hand safety control with timer assuring the best safety, and removable key selector. The two-hand control push-buttons are standard on projection models only (they are available on request on spot welder models).
- Emergency push-button to stop the machine immediately.
- New touch screen welding control with SENSUM programmable interface
