Single phase spot and projection welders – 81xx- 80-315 kVA

Single phase spot and projection welders – 81xx- 80-315 kVA

Divisions: Industrial resistance welding systems,Single phase linear action welders

Power (kVA)

100 kVA, 125 kVA, 160 kVA, 200 kVA, 250 kVA, 315 kVA, 80 kVA
Welding Type

Projection Welding, Spot Welding
Secondary Voltage (V)

10 V, 10,5 V, 11,1 V, 12,5 V, 13,8 V, 6,1 V, 6,8 V, 7,1 V, 7,4 V, 7,5 V, 8 V, 8,2 V, 8,3 V, 8,9 V, 9 V
Thermal Current (kA)

11,3 kA, 12,8 kA, 14,2 kA, 16,2 kA, 6,8 kA, 7 kA, 8,4 kA

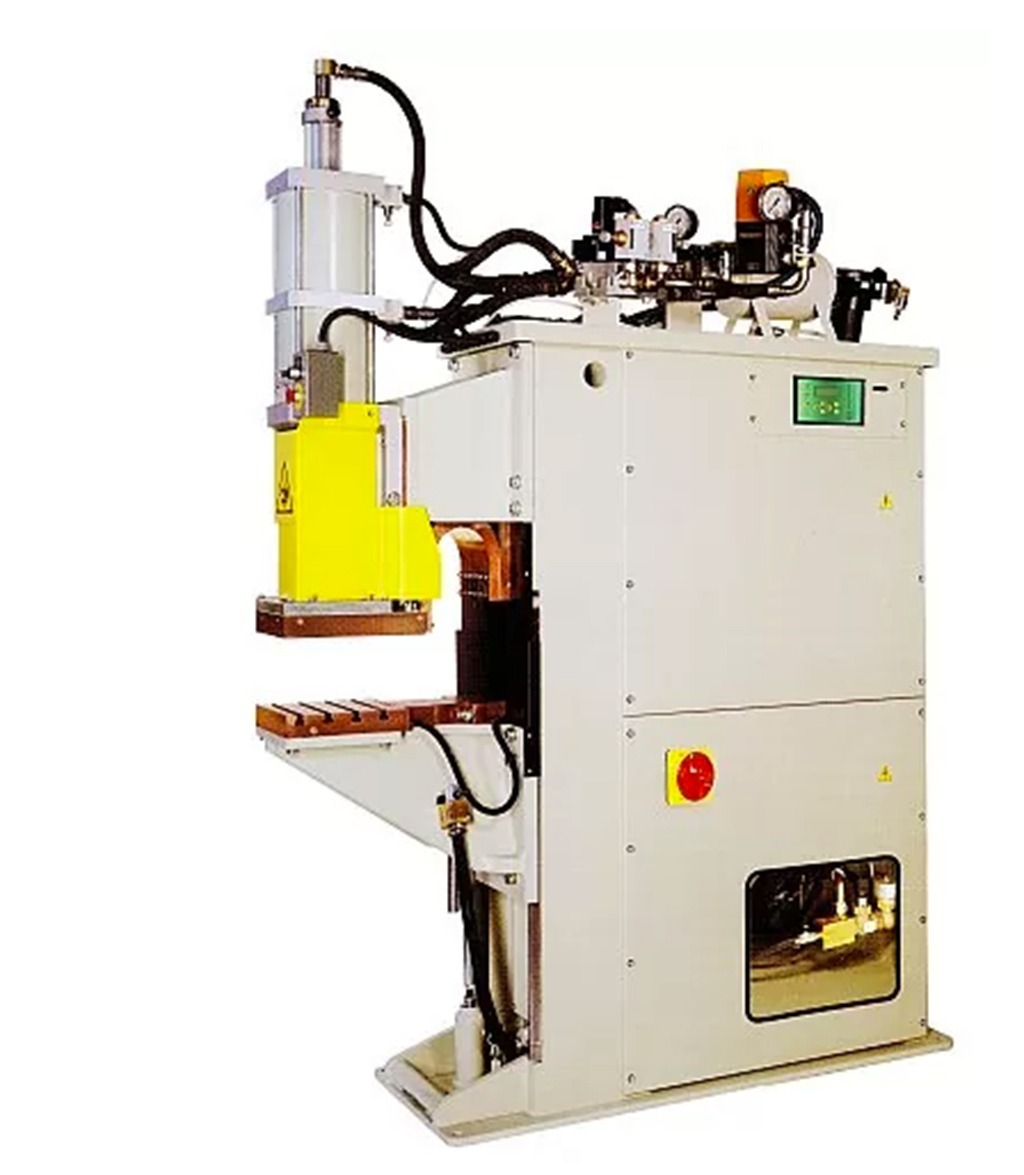

Single phase spot and projection welder with water-cooled transformer, plates, electrode-holders and electrodes; transformer with epoxy resin coated windings.

81xx

  • Modular design of mechanical structure, arms, brackets, cylinders.
  • Cylinder with chrome plated stem for heavy duty works and long life; adjustable anti-rotation device.
  • Lubrication free pneumatic components to eliminate oil mist and to protect the environment.
  • Head descent without pressure for set up and service.
  • Double-stroke cylinder with key control.
  • Built-in compressed air filter unit and tank. Compressed air disconnection device.
  • Electrodes speed control valves, shock absorber for end of stroke and air discharge silencers assuring the minimum noise.
  • Two stage electric foot control for clamping and welding pieces only if correctly positioned. Standard on spot welders, on request on projection welders.
  • Preconnected for additional double stage electric foot control for the direct recalling of welding program no.2 (not on units equipped with rotary selector recall).
  • Water-cooled transformer, plates, electrode-holders and electrodes; transformer with epoxy resin coated windings.
  • Synchronous SCR contactor insulated from the cooling water circuit with protection thermostat.
  • Standard on all models: two-hand safety control with timer assuring the best safety, and removable key selector,. The two-hand control push-buttons are standard on projection models only (thay are available on request on spot welder models).
  • Emergency push-button to stop the machine immediately.
  • Costant current TE550 microprocessor control unit.
Power (kVA)

100 kVA, 125 kVA, 160 kVA, 200 kVA, 250 kVA, 315 kVA, 80 kVA
Welding Type

Projection Welding, Spot Welding
Secondary Voltage (V)

10 V, 10,5 V, 11,1 V, 12,5 V, 13,8 V, 6,1 V, 6,8 V, 7,1 V, 7,4 V, 7,5 V, 8 V, 8,2 V, 8,3 V, 8,9 V, 9 V
Thermal Current (kA)

11,3 kA, 12,8 kA, 14,2 kA, 16,2 kA, 6,8 kA, 7 kA, 8,4 kA

PDF 81xx welder series
